รายละเอียดสินค้า:
|
| condition: | New | Applicable Material: | Stainless Steel, Metal, Aluminum, Carbon Steel |
|---|---|---|---|
| Laser Type: | Fiber Laser | Output Power: | 1500W - 6000W |
| usage: | Metal Welding | Welding Mode: | Continuous |
| Welding Speed: | 5-10mm/s | Wavelength: | 1070nm |
| dimensions: | 1010*890*1958MM | warranty: | 2 years |
| laser head brand: | Raytools HZG optional | guiderail brand: | HIWIN |
| control system brand: | Raytools | weight (kg): | 420 |
| key selling points: | Automatic | Product name: | Kettle Laser Welding Machine |
| Laser power: | 1500W- 6000W | Welding material: | Metal Stainless Steel Aluminum |
| Laser wavelength: | 1070nm | Voltage: | 380V/220V, 50/60Hz |
| Cooling System: | Water Cooling | Positioning accuracy: | Red light position |
| Repeating Precision: | ±0.01mm | Pulse Width: | 0.5-15 ms |
| เน้น: | 2000W Kettle Fiber Laser Welding Machine,Automatic Kettle Fiber Laser Welding Machine,Army Kettle Fiber Laser Welding Machine |
||

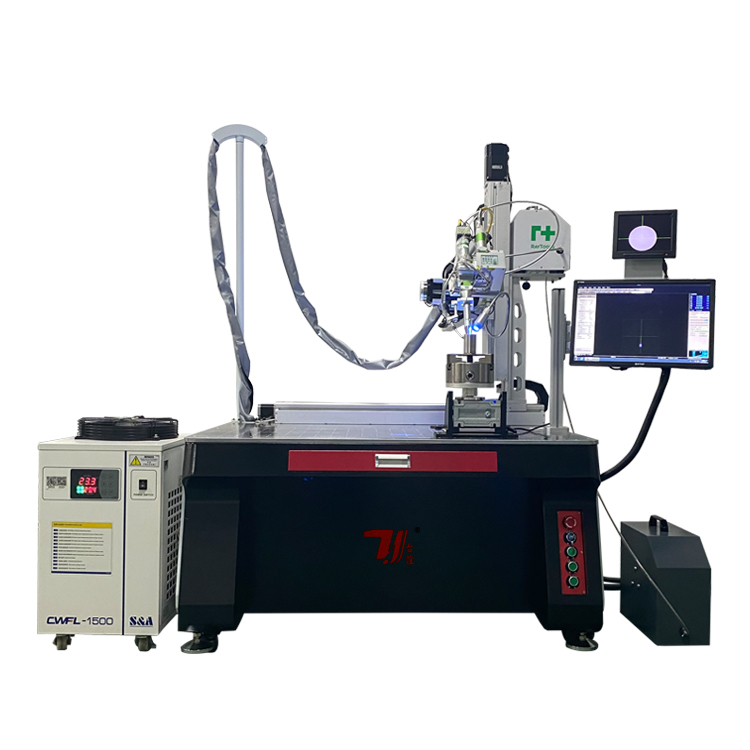

| Product Name | Kettel Automatic Laser Welding Machine | |||||
| Laser Power | 1500W-6000W optional | |||||
| Laser Source | Raycus Max IPG JPT optioal | |||||
| Welding Head | HZG Raytool optional | |||||
| Laser Wavelength | 1070nm | |||||
| Pulse Width | 0.5-15ms | |||||
| Pulse Frequency | ≤100Hz | |||||
| Spot adjusting range | 0.1-3mm | |||||
| Repeating precision | ±0.01mm | |||||
| Cooling System | Water Cooling | |||||
| Voltage | 220V/380V/3-Phase/50Hz/60Hz | |||||
